Red Hat Enterprise Linux 9 のバックアップを Rcloneで Google Drive に同期する

ConoHa の VPS に RHEL9 をインストールしていろいろ設定してきましたが、今回は遠隔バックアップの設定を入れていこうと思います。

既に MariaDB の設定の際に、ローカルの自動バックアップは行っていましたが、何かあった時のために Google Drive にも自動でコピーを置くようにします。

Rclone のインストール
Google Drive の設定
Google Cloud の設定
Rclone のセットアップ
- リモートのサービスを指定
- Windows 側でリモートセットアップを行う
Google Drive にバックアップ実行
- Cron で自動遠隔バックアップ
連携が維持されている事を確認する
まとめ

Rclone のインストール

EPEL リポジトリにある Rclone は、バージョンが 1.57.0（2021年11月）で結構古いものでした。

# dnf info rclone
Available Packages
Name         : rclone
Version      : 1.57.0
Release      : 2.el9
Architecture : src
Size         : 22 M
Source       : None
Repository   : epel-source
Summary      : Rsync for cloud storage
URL          : http://rclone.org/
License      : MIT
Description  :
             : Rclone is a command line program to sync files and directories to
             : and from various cloud services.

# dnf info rclone

Available Packages

Name : rclone

Version : 1.57.0

Release : 2.el9

Architecture : src

Size : 22 M

Source : None

Repository : epel-source

Summary : Rsync for cloud storage

URL : http://rclone.org/

License : MIT

Description :

: Rclone is a command line program to sync files and directories to

: and from various cloud services.

事前に調べたところ古いバージョンだと Google の認証まわりで不具合があるらしいので、新しいものを使った方が良さそうです。

公式サイトを見ると、最新バージョンは 1.66.0（2024年5月現在）でしたので、今回はこれを使用していきます。

Rclone downloads

Download rclone binaries for your OS.

インストールガイドによると Intel/AMD（64 Bit）の Zip ファイルをダウンロードして、バイナリファイルを適切な場所（/usr/bin/）に配置すれば良さそうですが、面倒なので今回は公式サイトの RPM からインストールしました。

# dnf install https://downloads.rclone.org/rclone-current-linux-amd64.rpm
rclone-current-linux-amd64.rpm
Dependencies resolved.
=============================================================================================================================================================
 Package                            Architecture                       Version                                Repository                                Size
=============================================================================================================================================================
Installing:
 rclone                             x86_64                             1.66.0-1                               @commandline                              21 M

Transaction Summary
=============================================================================================================================================================
Install  1 Package

Total size: 21 M
Installed size: 65 M
Is this ok [y/N]: y
Downloading Packages:
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
  Preparing        :                                                                                                                                     1/1
  Installing       : rclone-1.66.0-1.x86_64                                                                                                              1/1
  Running scriptlet: rclone-1.66.0-1.x86_64                                                                                                              1/1
  Verifying        : rclone-1.66.0-1.x86_64                                                                                                              1/1

Installed:
  rclone-1.66.0-1.x86_64

Complete!

# dnf install https://downloads.rclone.org/rclone-current-linux-amd64.rpm

rclone-current-linux-amd64.rpm

Dependencies resolved.

=============================================================================================================================================================

Package Architecture Version Repository Size

=============================================================================================================================================================

Installing:

rclone x86_64 1.66.0-1 @commandline 21 M

Transaction Summary

=============================================================================================================================================================

Install 1 Package

Total size: 21 M

Installed size: 65 M

Is this ok [y/N]: y

Downloading Packages:

Running transaction check

Transaction check succeeded.

Running transaction test

Transaction test succeeded.

Running transaction

Preparing : 1/1

Installing : rclone-1.66.0-1.x86_64 1/1

Running scriptlet: rclone-1.66.0-1.x86_64 1/1

Verifying : rclone-1.66.0-1.x86_64 1/1

Installed:

rclone-1.66.0-1.x86_64

Complete!

Google Drive の設定

Rcolone の設定に入る前に、先に Google Drive でバックアップデータの保存先を作成しておきます。

このフォルダが Rclone でアクセスできる、ルートフォルダになります。

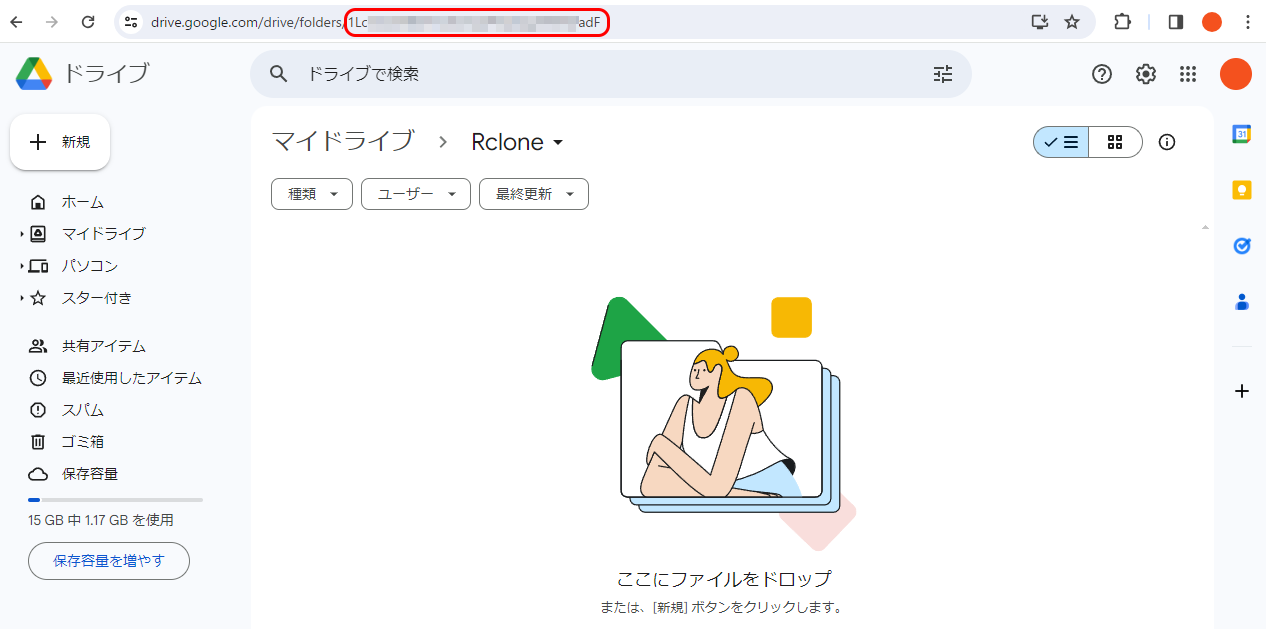

作成したフォルダに移動し、フォルダの ID を取得しておきます。

※URL で folders/ 以降の文字列が、後述する Rclone の root_folder_id の値になります。

Google Cloud の設定

続いて Rclone から操作する Google Drive API の準備をしていきます。

Google Cloud でプロジェクトの作成

Google Cloud Platform

Google Cloud Platform lets you build, deploy, and scale applications, websites, and services on the same infrastructure ...

Google Cloud にログインします。

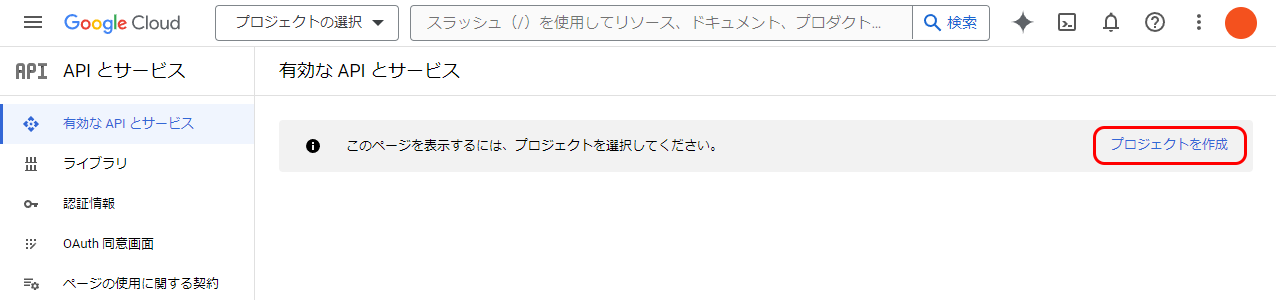

「API とサービス」のページに移動し、「プロジェクトを作成」を選択してください。

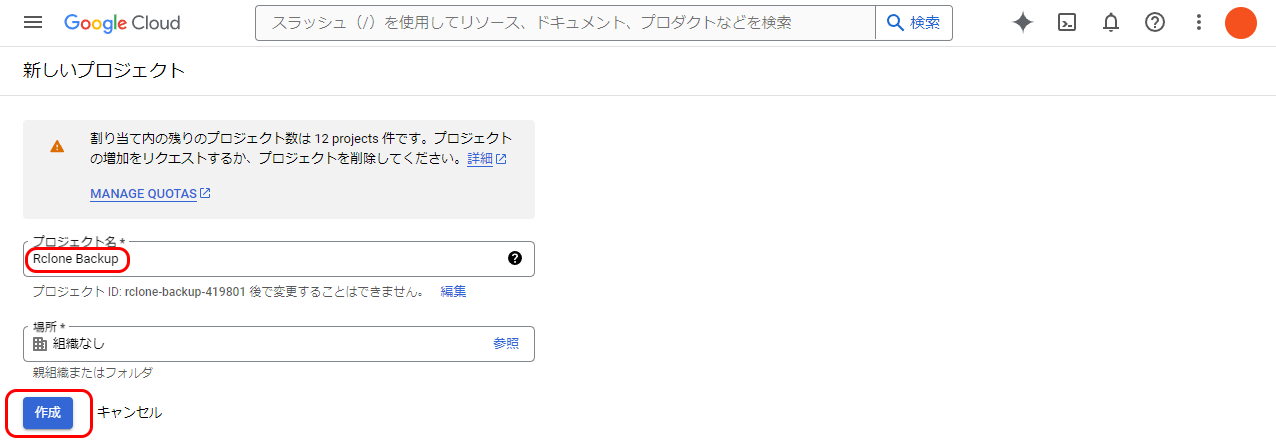

プロジェクト名を入力（ここでは「Rclone Backup」としました）して、作成ボタンを押します。

Google Drive API の有効化

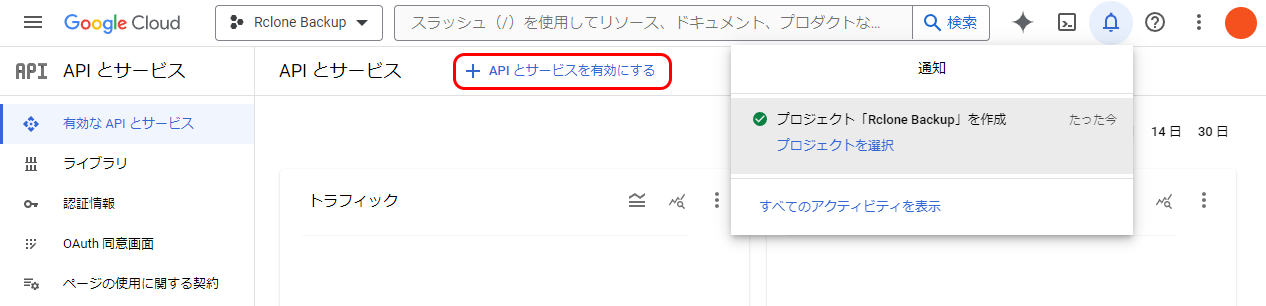

API とサービスを有効にすると、API ライブラリを選択する画面に遷移します。

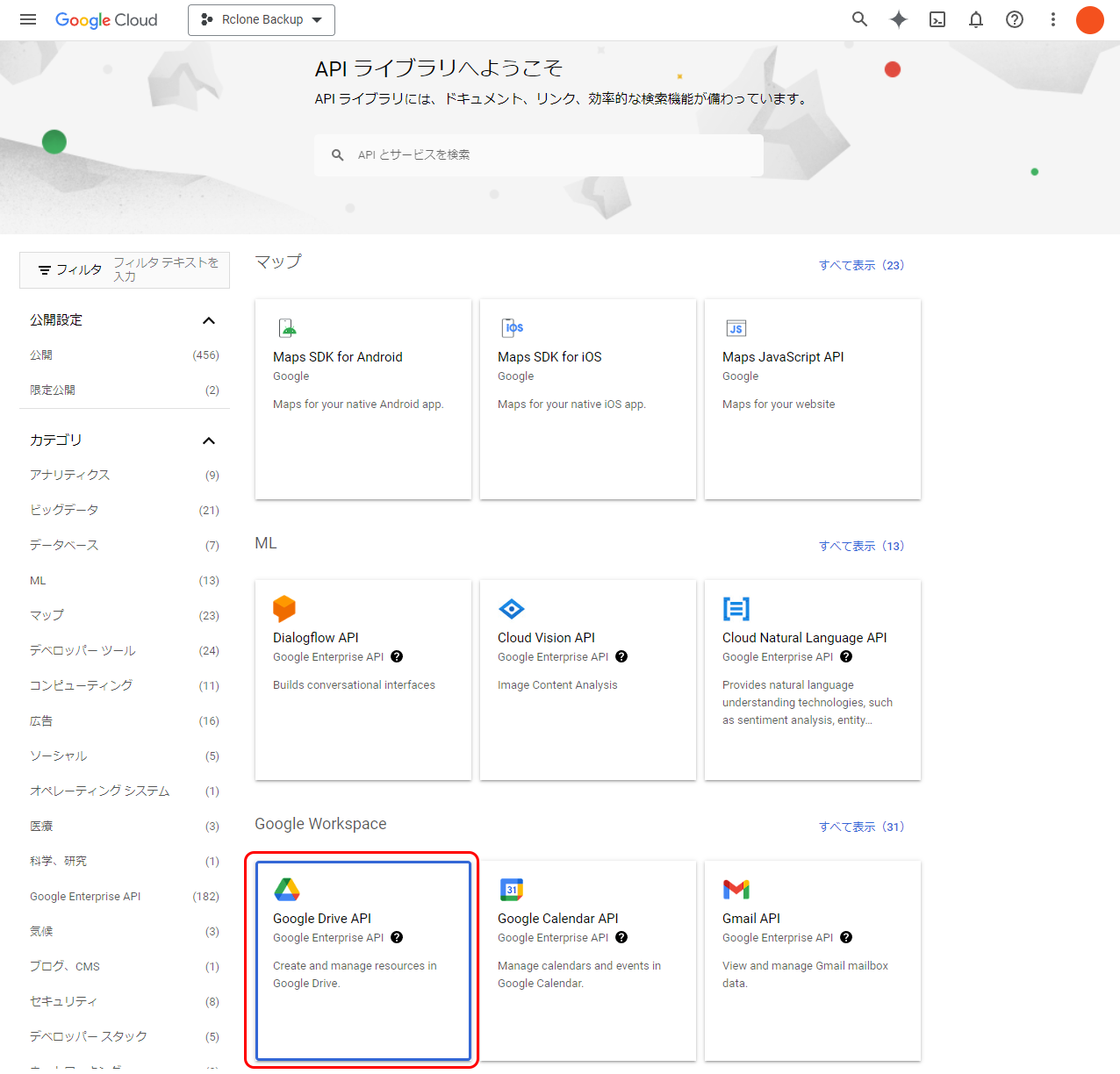

API ライブラリの中から、Google Drive API を選択します。

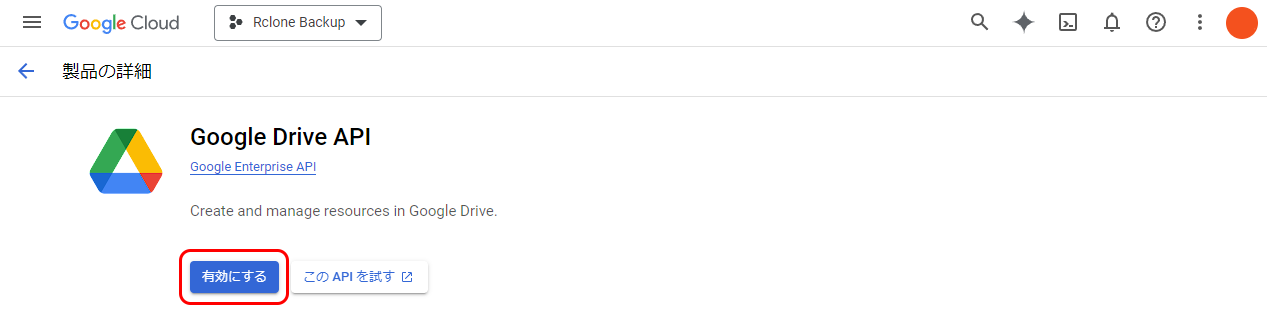

Google Drive API を有効にするか尋ねられますので、「有効にする」を選択してください。

Google Drive API が有効になりました。

OAuth 同意画面の設定

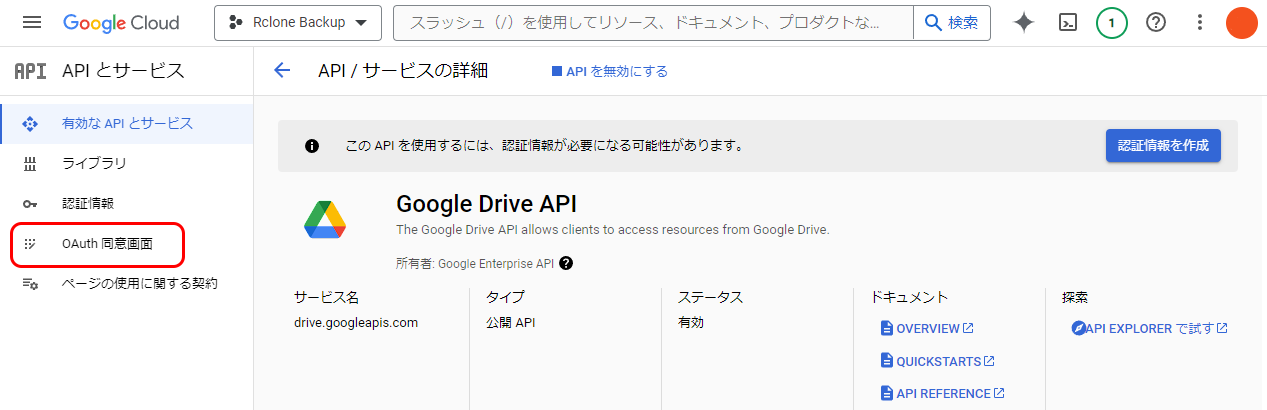

認証情報を作成のボタンを押したくなるところですが、左のメニューから「OAuth 同意画面」を開きます。

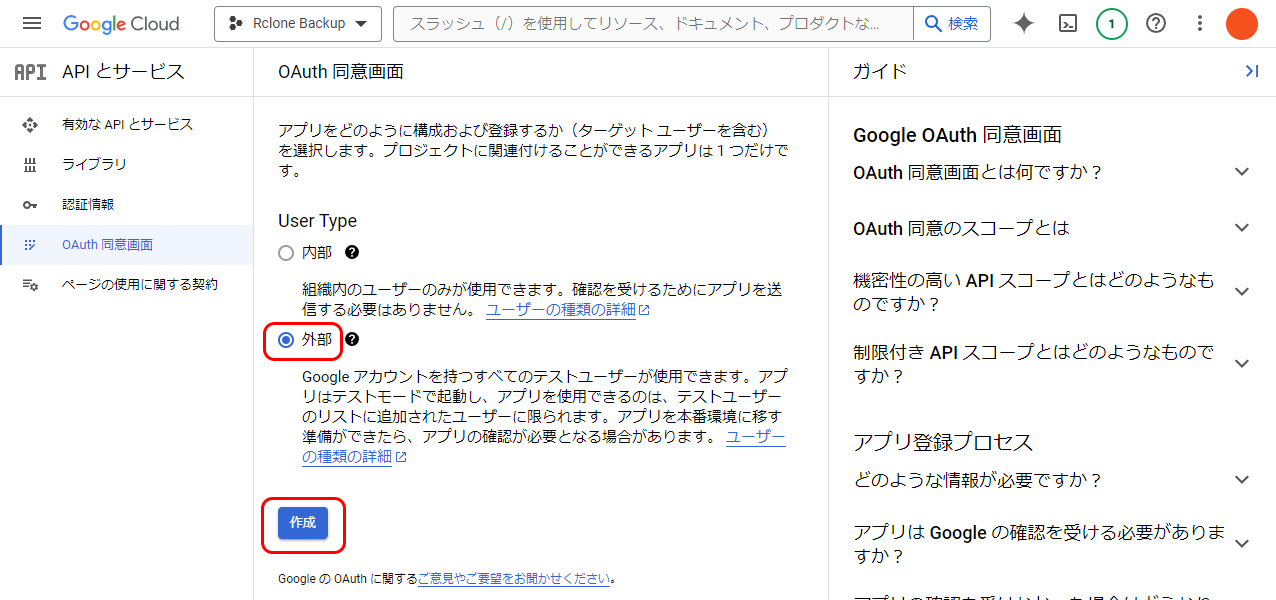

OAuth 同意画面が開きますので、User Type を「外部」にして作成ボタンをクリックします。

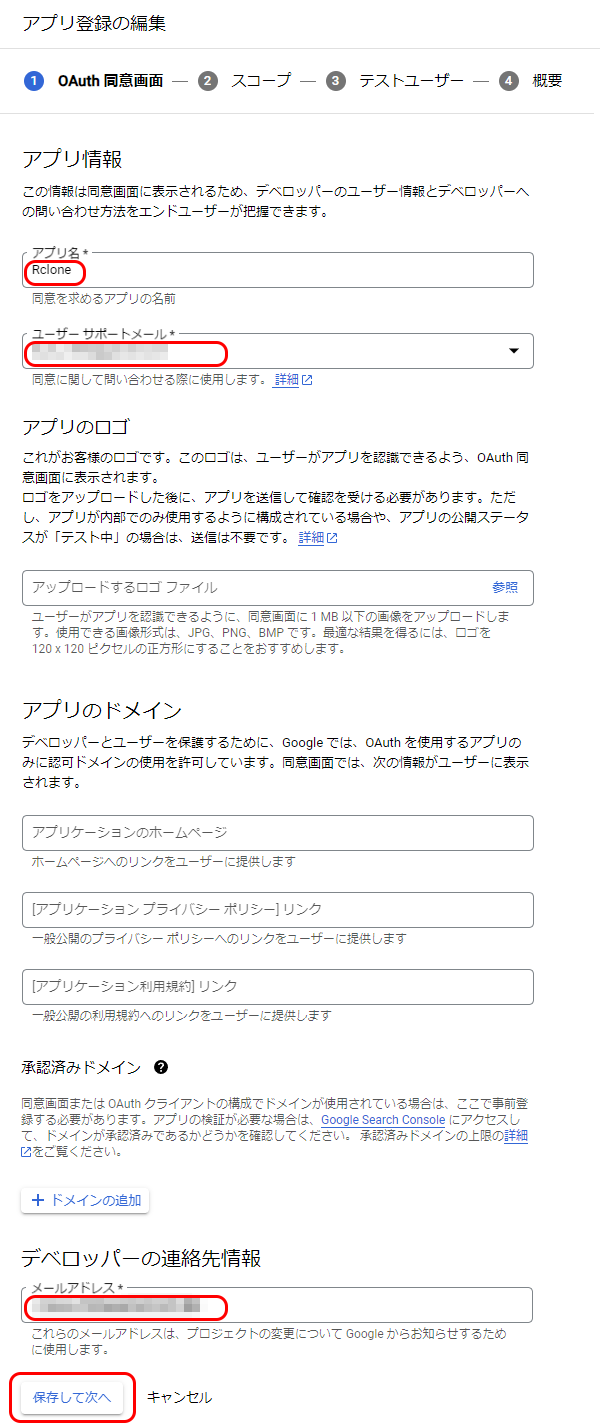

アプリ登録の編集画面が表示されますので、任意のアプリ名を入力します。

また、ユーザーサポートメールとデベロッパーの連絡先情報には、Google アカウントで使用しているメールアドレスを入力します。

保存して次へ進むと、スコープの設定画面になりますので「スコープの追加または削除」をクリックします。

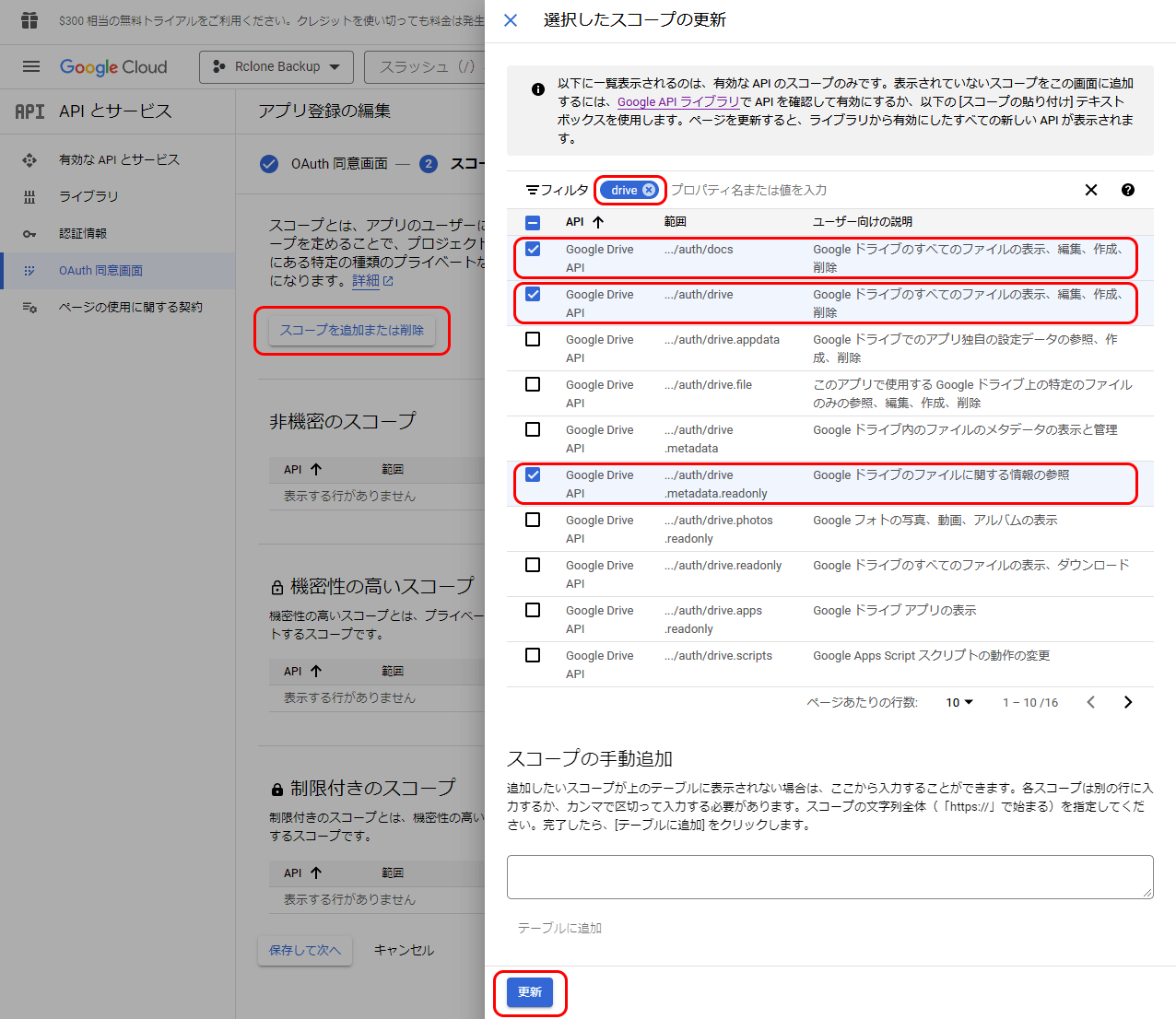

選択したスコープの更新画面になりますので、フィルタに「drive」と入れて絞り込みます。

範囲が「.../auth/docs」、「.../auth/drive」、「.../auth/drive.metadata.readonly」の 3 つのスコープにチェックを入れ、更新ボタンを押してください。

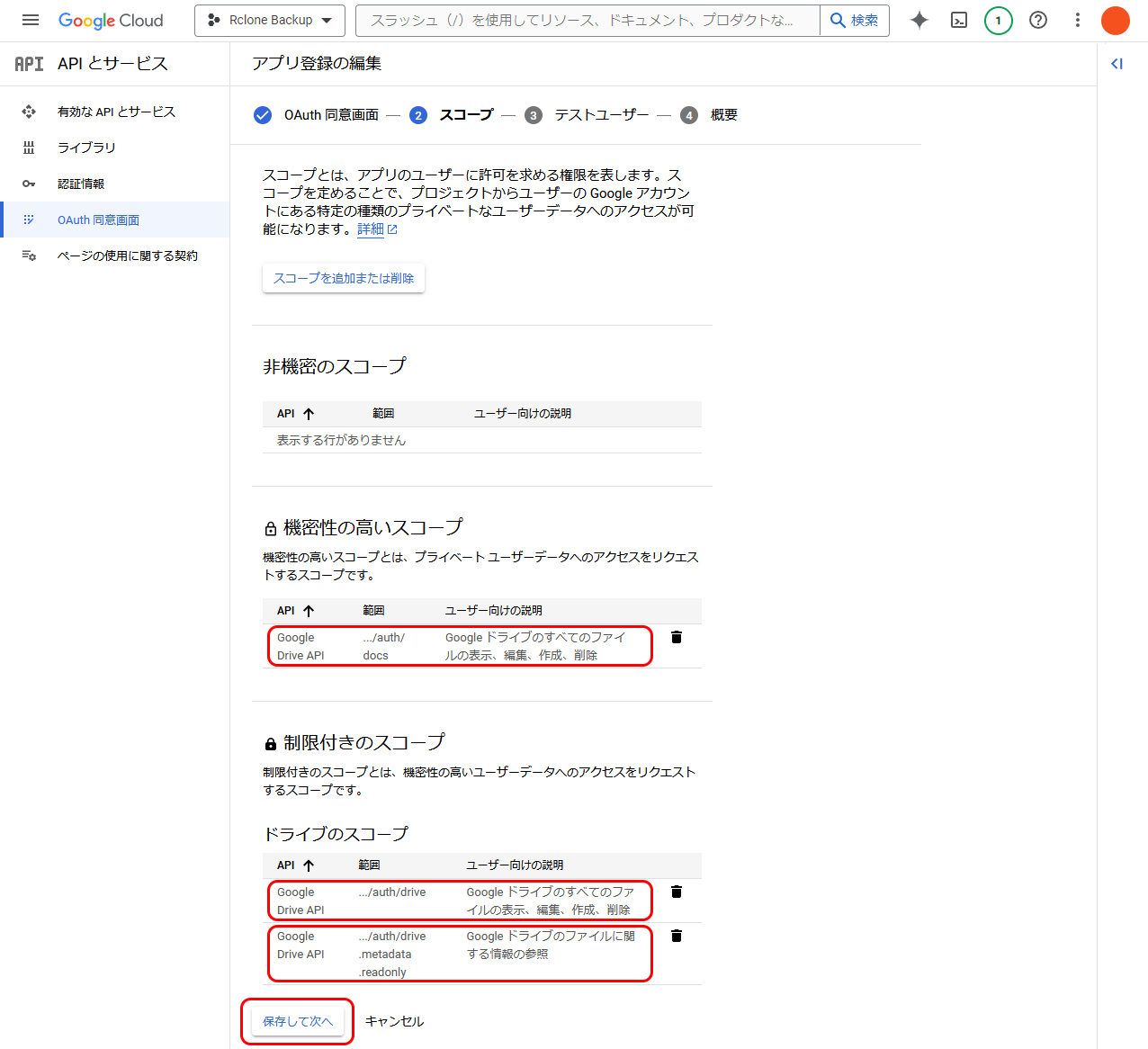

機密性の高いスコープに「.../auth/docs」が、制限付きのスコープに「.../auth/drive」と「.../auth/drive.metadata.readonly」が追加されたことを確認して、「保存して次へ」をクリックします。

テストユーザーの画面に進みますが、ユーザーは追加せずに次へ進みます。

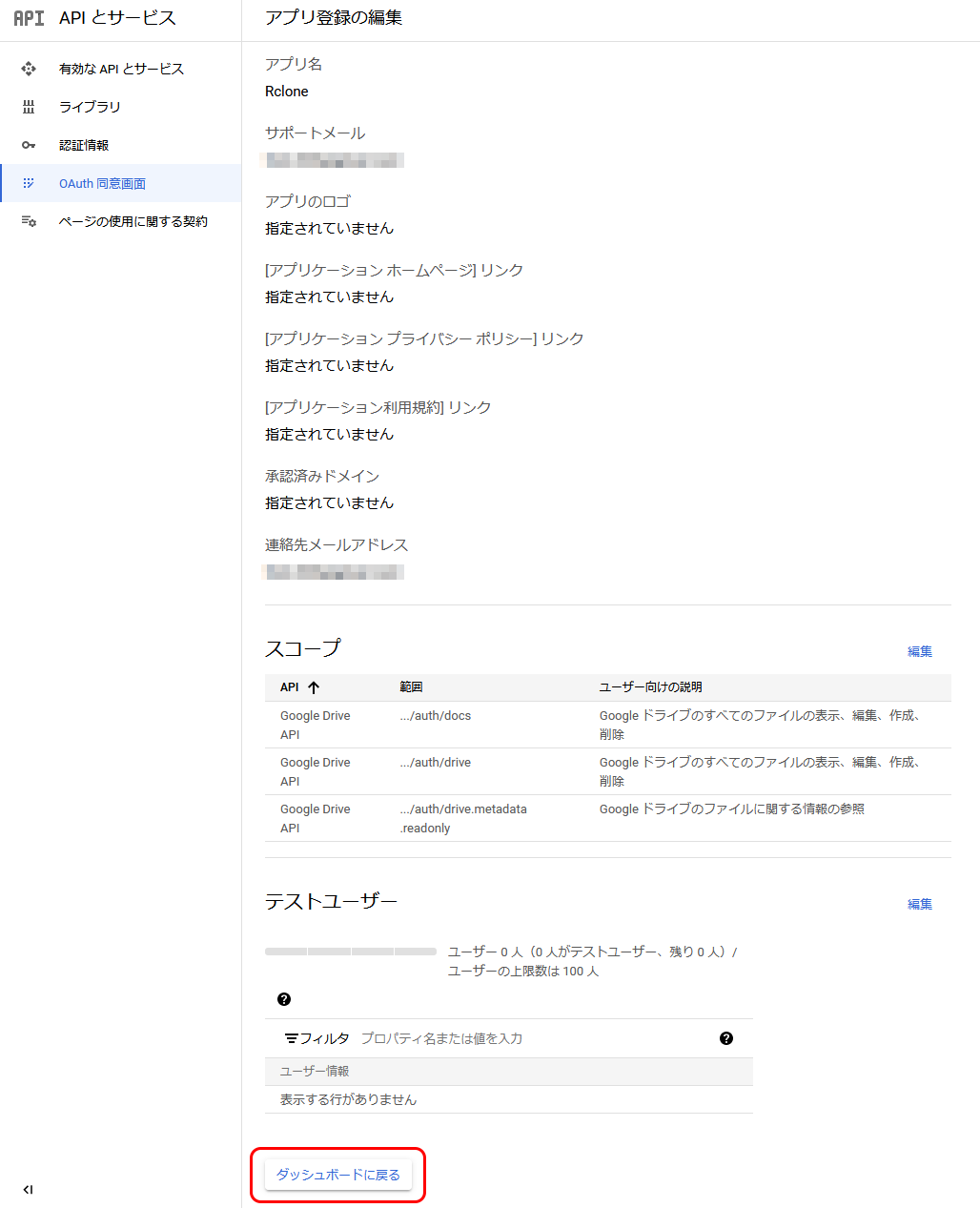

OAuth 同意画面の概要が表示されますので、間違いがなければダッシュボードに戻ります。

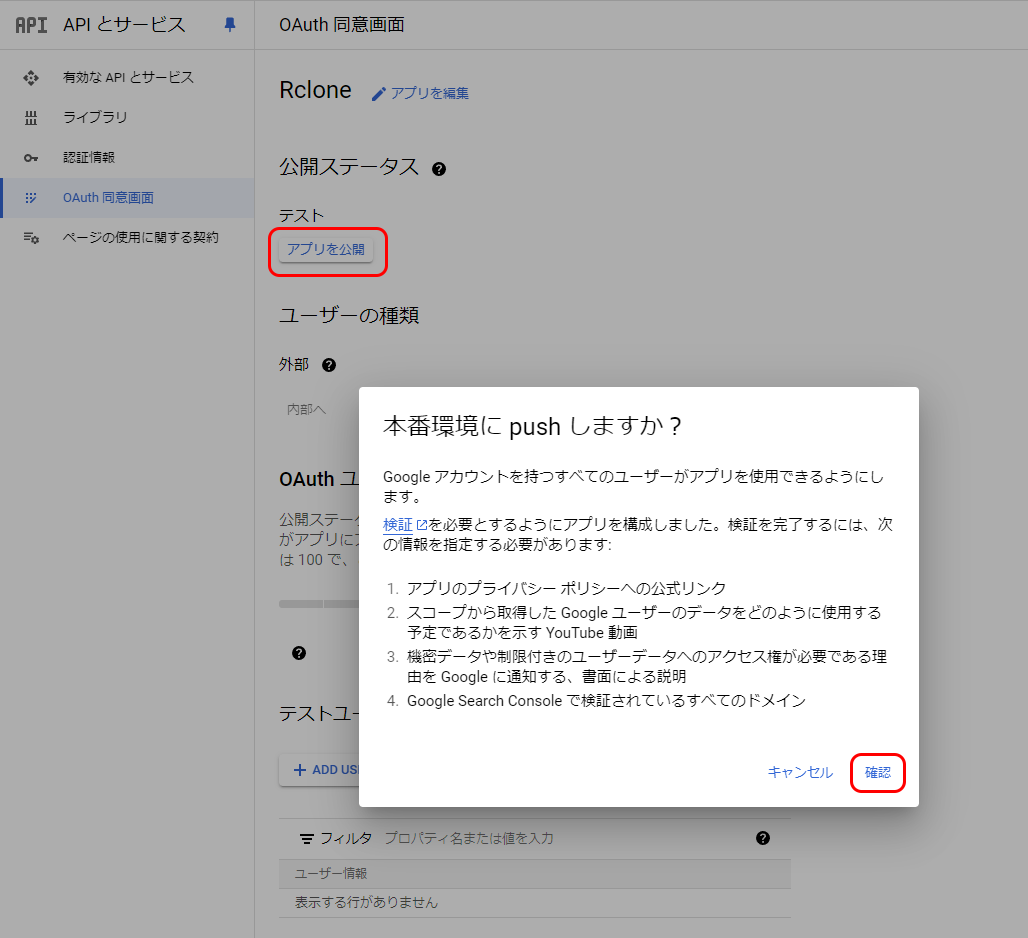

OAuth 同意画面のダッシュボードに戻ったら、公開ステータスの「アプリを公開」ボタンをクリックして、本番環境にプッシュします。

公開ステータスが「テスト」から「本番環境」に変化しました。

確認ステータスで「確認が必要」となっていますが、一般公開しないので無視して大丈夫です。

認証情報を作成

続いて、認証情報の設定をしていきます。

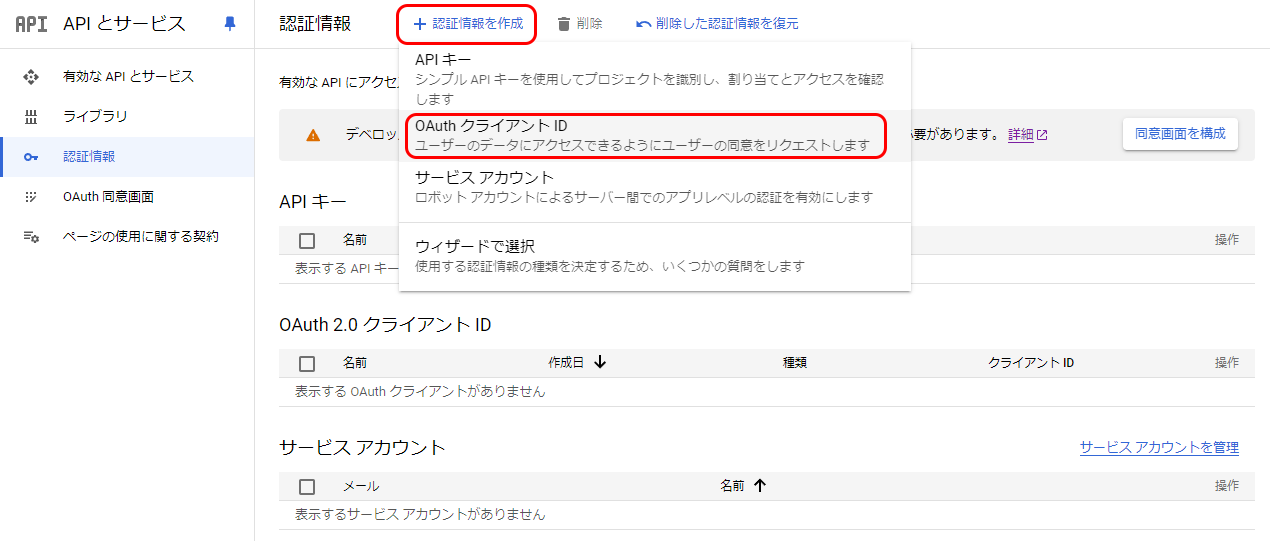

左のメニューで「認証情報」を開き、画面上部の「+ 認証情報を作成」から「OAuth クライアント ID」を選択します。

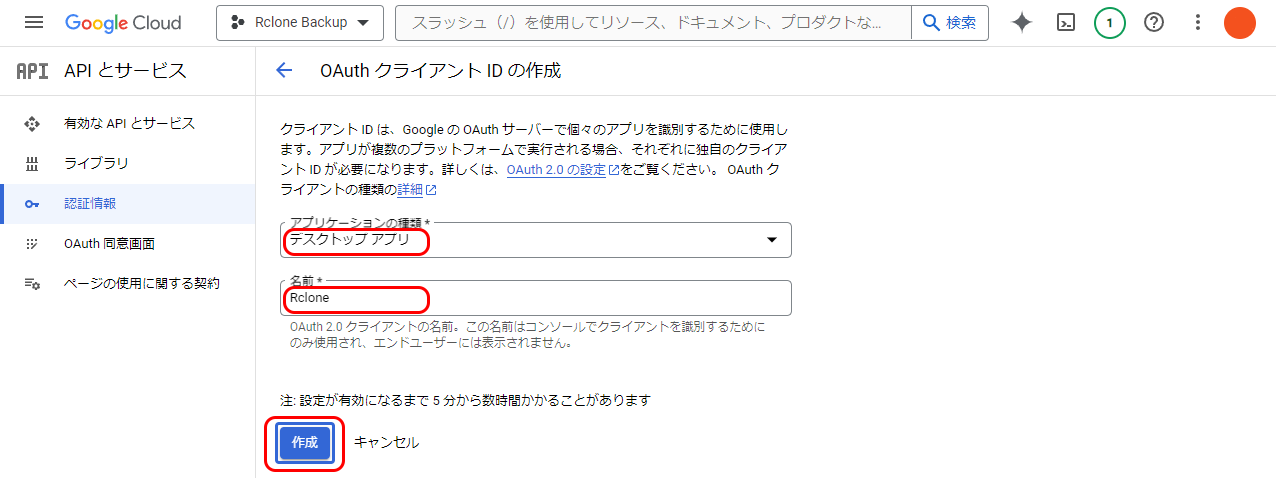

OAuth クライアント ID の作成画面になりますので、アプリケーションの種類から「デスクトップアプリ」を選択し、任意の名前（ここでは Rclone）を付け、作成ボタンを押します。

OAuth クライアントを作成しましたというダイアログが表示されました。

クライアント ID と、クライアントシークレットが Rclone の設定の際に必要になりますので、この画面を表示したまま Rclone 側の設定を行っていきます。

Rclone のセットアップ

rclone config を実行して、遠隔バックアップの設定をしていきます。

新しく設定を入れていくので「n」で New remote を指定してください。

# rclone config
No remotes found - make a new one
n) New remote
s) Set configuration password
q) Quit config
n/s/q> n

# rclone config

No remotes found - make a new one

n) New remote

s) Set configuration password

q) Quit config

n/s/q> n

リモートのサービスを指定

続いて、リモートに対して任意の名前（ここでは GoogleDrive）を付け、サービスの種類（Google Drive の場合は 17）を指定します。

※サービスの番号（17）ではなく、drive と指定しても大丈夫です。

name> GoogleDrive

Option Storage.
Type of storage to configure.
Choose a number from below, or type in your own value.
 1 / 1Fichier
   \ (fichier)
 2 / Akamai NetStorage
   \ (netstorage)
 3 / Alias for an existing remote
   \ (alias)
 4 / Amazon S3 Compliant Storage Providers including AWS, Alibaba, ArvanCloud, Ceph, ChinaMobile, Cloudflare, DigitalOcean, Dreamhost, GCS, HuaweiOBS, IBMCOS, IDrive, IONOS, LyveCloud, Leviia, Liara, Linode, Minio, Netease, Petabox, RackCorp, Rclone, Scaleway, SeaweedFS, StackPath, Storj, Synology, TencentCOS, Wasabi, Qiniu and others
   \ (s3)
 5 / Backblaze B2
   \ (b2)
 6 / Better checksums for other remotes
   \ (hasher)
 7 / Box
   \ (box)
 8 / Cache a remote
   \ (cache)
 9 / Citrix Sharefile
   \ (sharefile)
10 / Combine several remotes into one
   \ (combine)
11 / Compress a remote
   \ (compress)
12 / Dropbox
   \ (dropbox)
13 / Encrypt/Decrypt a remote
   \ (crypt)
14 / Enterprise File Fabric
   \ (filefabric)
15 / FTP
   \ (ftp)
16 / Google Cloud Storage (this is not Google Drive)
   \ (google cloud storage)
17 / Google Drive
   \ (drive)
18 / Google Photos
   \ (google photos)
19 / HTTP
   \ (http)
20 / Hadoop distributed file system
   \ (hdfs)
21 / HiDrive
   \ (hidrive)
22 / ImageKit.io
   \ (imagekit)
23 / In memory object storage system.
   \ (memory)
24 / Internet Archive
   \ (internetarchive)
25 / Jottacloud
   \ (jottacloud)
26 / Koofr, Digi Storage and other Koofr-compatible storage providers
   \ (koofr)
27 / Linkbox
   \ (linkbox)
28 / Local Disk
   \ (local)
29 / Mail.ru Cloud
   \ (mailru)
30 / Mega
   \ (mega)
31 / Microsoft Azure Blob Storage
   \ (azureblob)
32 / Microsoft Azure Files
   \ (azurefiles)
33 / Microsoft OneDrive
   \ (onedrive)
34 / OpenDrive
   \ (opendrive)
35 / OpenStack Swift (Rackspace Cloud Files, Blomp Cloud Storage, Memset Memstore, OVH)
   \ (swift)
36 / Oracle Cloud Infrastructure Object Storage
   \ (oracleobjectstorage)
37 / Pcloud
   \ (pcloud)
38 / PikPak
   \ (pikpak)
39 / Proton Drive
   \ (protondrive)
40 / Put.io
   \ (putio)
41 / QingCloud Object Storage
   \ (qingstor)
42 / Quatrix by Maytech
   \ (quatrix)
43 / SMB / CIFS
   \ (smb)
44 / SSH/SFTP
   \ (sftp)
45 / Sia Decentralized Cloud
   \ (sia)
46 / Storj Decentralized Cloud Storage
   \ (storj)
47 / Sugarsync
   \ (sugarsync)
48 / Transparently chunk/split large files
   \ (chunker)
49 / Union merges the contents of several upstream fs
   \ (union)
50 / Uptobox
   \ (uptobox)
51 / WebDAV
   \ (webdav)
52 / Yandex Disk
   \ (yandex)
53 / Zoho
   \ (zoho)
54 / premiumize.me
   \ (premiumizeme)
55 / seafile
   \ (seafile)
Storage> 17

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

name> GoogleDrive

Option Storage.

Type of storage to configure.

Choose a number from below, or type in your own value.

1 / 1Fichier

\ (fichier)

2 / Akamai NetStorage

\ (netstorage)

3 / Alias for an existing remote

\ (alias)

4 / Amazon S3 Compliant Storage Providers including AWS, Alibaba, ArvanCloud, Ceph, ChinaMobile, Cloudflare, DigitalOcean, Dreamhost, GCS, HuaweiOBS, IBMCOS, IDrive, IONOS, LyveCloud, Leviia, Liara, Linode, Minio, Netease, Petabox, RackCorp, Rclone, Scaleway, SeaweedFS, StackPath, Storj, Synology, TencentCOS, Wasabi, Qiniu and others

\ (s3)

5 / Backblaze B2

\ (b2)

6 / Better checksums for other remotes

\ (hasher)

7 / Box

\ (box)

8 / Cache a remote

\ (cache)

9 / Citrix Sharefile

\ (sharefile)

10 / Combine several remotes into one

\ (combine)

11 / Compress a remote

\ (compress)

12 / Dropbox

\ (dropbox)

13 / Encrypt/Decrypt a remote

\ (crypt)

14 / Enterprise File Fabric

\ (filefabric)

15 / FTP

\ (ftp)

16 / Google Cloud Storage (this is not Google Drive)

\ (google cloud storage)

17 / Google Drive

\ (drive)

18 / Google Photos

\ (google photos)

19 / HTTP

\ (http)

20 / Hadoop distributed file system

\ (hdfs)

21 / HiDrive

\ (hidrive)

22 / ImageKit.io

\ (imagekit)

23 / In memory object storage system.

\ (memory)

24 / Internet Archive

\ (internetarchive)

25 / Jottacloud

\ (jottacloud)

26 / Koofr, Digi Storage and other Koofr-compatible storage providers

\ (koofr)

27 / Linkbox

\ (linkbox)

28 / Local Disk

\ (local)

29 / Mail.ru Cloud

\ (mailru)

30 / Mega

\ (mega)

31 / Microsoft Azure Blob Storage

\ (azureblob)

32 / Microsoft Azure Files

\ (azurefiles)

33 / Microsoft OneDrive

\ (onedrive)

34 / OpenDrive

\ (opendrive)

35 / OpenStack Swift (Rackspace Cloud Files, Blomp Cloud Storage, Memset Memstore, OVH)

\ (swift)

36 / Oracle Cloud Infrastructure Object Storage

\ (oracleobjectstorage)

37 / Pcloud

\ (pcloud)

38 / PikPak

\ (pikpak)

39 / Proton Drive

\ (protondrive)

40 / Put.io

\ (putio)

41 / QingCloud Object Storage

\ (qingstor)

42 / Quatrix by Maytech

\ (quatrix)

43 / SMB / CIFS

\ (smb)

44 / SSH/SFTP

\ (sftp)

45 / Sia Decentralized Cloud

\ (sia)

46 / Storj Decentralized Cloud Storage

\ (storj)

47 / Sugarsync

\ (sugarsync)

48 / Transparently chunk/split large files

\ (chunker)

49 / Union merges the contents of several upstream fs

\ (union)

50 / Uptobox

\ (uptobox)

51 / WebDAV

\ (webdav)

52 / Yandex Disk

\ (yandex)

53 / Zoho

\ (zoho)

54 / premiumize.me

\ (premiumizeme)

55 / seafile

\ (seafile)

Storage> 17

次に、サービスごとのオプションを指定していきます。

先ほど取得したクライアント ID を貼り付けます。

Option client_id.
Google Application Client Id
Setting your own is recommended.
See https://rclone.org/drive/#making-your-own-client-id for how to create your own.
If you leave this blank, it will use an internal key which is low performance.
Enter a string value. Press Enter for the default ("").
client_id> xxxxxxxxxxxx-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx.apps.googleusercontent.com

Option client_id.

Google Application Client Id

Setting your own is recommended.

See https://rclone.org/drive/#making-your-own-client-id for how to create your own.

If you leave this blank, it will use an internal key which is low performance.

Enter a string value. Press Enter for the default ("").

client_id> xxxxxxxxxxxx-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx.apps.googleusercontent.com

同様に、先ほど取得したクライアントシークレットを貼り付けます。

Option client_secret.
OAuth Client Secret.
Leave blank normally.
Enter a string value. Press Enter for the default ("").
client_secret> GOCSPX-XXXXXXXXXXXXXXXXXXXXXXXXXXXX

Option client_secret.

OAuth Client Secret.

Leave blank normally.

Enter a string value. Press Enter for the default ("").

client_secret> GOCSPX-XXXXXXXXXXXXXXXXXXXXXXXXXXXX

※ここまで入力したら、Google Cloud 側のダイアログは閉じても大丈夫です。

続いてアクセス権の設定になります。

バックアップファイルを書き込むので、フルアクセス（1）を入力します。

Option scope.
Comma separated list of scopes that rclone should use when requesting access from drive.
Choose a number from below, or type in your own value.
Press Enter to leave empty.
 1 / Full access all files, excluding Application Data Folder.
   \ (drive)
 2 / Read-only access to file metadata and file contents.
   \ (drive.readonly)
   / Access to files created by rclone only.
 3 | These are visible in the drive website.
   | File authorization is revoked when the user deauthorizes the app.
   \ (drive.file)
   / Allows read and write access to the Application Data folder.
 4 | This is not visible in the drive website.
   \ (drive.appfolder)
   / Allows read-only access to file metadata but
 5 | does not allow any access to read or download file content.
   \ (drive.metadata.readonly)
scope> 1

Option scope.

Comma separated list of scopes that rclone should use when requesting access from drive.

Choose a number from below, or type in your own value.

Press Enter to leave empty.

1 / Full access all files, excluding Application Data Folder.

\ (drive)

2 / Read-only access to file metadata and file contents.

\ (drive.readonly)

/ Access to files created by rclone only.

3 | These are visible in the drive website.

| File authorization is revoked when the user deauthorizes the app.

\ (drive.file)

/ Allows read and write access to the Application Data folder.

4 | This is not visible in the drive website.

\ (drive.appfolder)

/ Allows read-only access to file metadata but

5 | does not allow any access to read or download file content.

\ (drive.metadata.readonly)

scope> 1

Rclone からアクセス可能な Google Drive のフォルダを指定したいので、Advanced config で Yes（y）を応答します。

Option service_account_file.
Service Account Credentials JSON file path.
Leave blank normally.
Needed only if you want use SA instead of interactive login.
Leading `~` will be expanded in the file name as will environment variables such as `${RCLONE_CONFIG_DIR}`.
Enter a value. Press Enter to leave empty.
service_account_file>

Edit advanced config?
y) Yes
n) No (default)
y/n> y

Option service_account_file.

Service Account Credentials JSON file path.

Leave blank normally.

Needed only if you want use SA instead of interactive login.

Leading `~` will be expanded in the file name as will environment variables such as `${RCLONE_CONFIG_DIR}`.

Enter a value. Press Enter to leave empty.

service_account_file>

Edit advanced config?

y) Yes

n) No (default)

y/n> y

root_folder_id には、前述した Google Drive のフォルダ ID を入力します。

それ以外の設定は全て空エンターで、デフォルト値を設定します。

最後に、再び Edit advanced config? と尋ねられますので、今度は No（n）で先に進みます。

Option token.
OAuth Access Token as a JSON blob.
Enter a value. Press Enter to leave empty.
token>

Option auth_url.
Auth server URL.
Leave blank to use the provider defaults.
Enter a value. Press Enter to leave empty.
auth_url>

Option token_url.
Token server url.
Leave blank to use the provider defaults.
Enter a value. Press Enter to leave empty.
token_url>

Option root_folder_id.
ID of the root folder.
Leave blank normally.
Fill in to access "Computers" folders (see docs), or for rclone to use
a non root folder as its starting point.
Enter a value. Press Enter to leave empty.
root_folder_id> xxxxxGoogleDriveFolderIDxxxxx

Option auth_owner_only.
Only consider files owned by the authenticated user.
Enter a boolean value (true or false). Press Enter for the default (false).
auth_owner_only>

Option use_trash.
Send files to the trash instead of deleting permanently.
Defaults to true, namely sending files to the trash.
Use `--drive-use-trash=false` to delete files permanently instead.
Enter a boolean value (true or false). Press Enter for the default (true).
use_trash>

Option copy_shortcut_content.
Server side copy contents of shortcuts instead of the shortcut.
When doing server side copies, normally rclone will copy shortcuts as
shortcuts.
If this flag is used then rclone will copy the contents of shortcuts
rather than shortcuts themselves when doing server side copies.
Enter a boolean value (true or false). Press Enter for the default (false).
copy_shortcut_content>

Option skip_gdocs.
Skip google documents in all listings.
If given, gdocs practically become invisible to rclone.
Enter a boolean value (true or false). Press Enter for the default (false).
skip_gdocs>

Option show_all_gdocs.
Show all Google Docs including non-exportable ones in listings.
If you try a server side copy on a Google Form without this flag, you
will get this error:
    No export formats found for "application/vnd.google-apps.form"
However adding this flag will allow the form to be server side copied.
Note that rclone doesn't add extensions to the Google Docs file names
in this mode.
Do **not** use this flag when trying to download Google Docs - rclone
will fail to download them.
Enter a boolean value (true or false). Press Enter for the default (false).
show_all_gdocs>

Option skip_checksum_gphotos.
Skip checksums on Google photos and videos only.
Use this if you get checksum errors when transferring Google photos or
videos.
Setting this flag will cause Google photos and videos to return a
blank checksums.
Google photos are identified by being in the "photos" space.
Corrupted checksums are caused by Google modifying the image/video but
not updating the checksum.
Enter a boolean value (true or false). Press Enter for the default (false).
skip_checksum_gphotos>

Option shared_with_me.
Only show files that are shared with me.
Instructs rclone to operate on your "Shared with me" folder (where
Google Drive lets you access the files and folders others have shared
with you).
This works both with the "list" (lsd, lsl, etc.) and the "copy"
commands (copy, sync, etc.), and with all other commands too.
Enter a boolean value (true or false). Press Enter for the default (false).
shared_with_me>

Option trashed_only.
Only show files that are in the trash.
This will show trashed files in their original directory structure.
Enter a boolean value (true or false). Press Enter for the default (false).
trashed_only>

Option starred_only.
Only show files that are starred.
Enter a boolean value (true or false). Press Enter for the default (false).
starred_only>

Option export_formats.
Comma separated list of preferred formats for downloading Google docs.
Enter a string value. Press Enter for the default (docx,xlsx,pptx,svg).
export_formats>

Option import_formats.
Comma separated list of preferred formats for uploading Google docs.
Enter a value. Press Enter to leave empty.
import_formats>

Option allow_import_name_change.
Allow the filetype to change when uploading Google docs.
E.g. file.doc to file.docx. This will confuse sync and reupload every time.
Enter a boolean value (true or false). Press Enter for the default (false).
allow_import_name_change>

Option list_chunk.
Size of listing chunk 100-1000, 0 to disable.
Enter a signed integer. Press Enter for the default (1000).
list_chunk>

Option impersonate.
Impersonate this user when using a service account.
Enter a value. Press Enter to leave empty.
impersonate>

Option upload_cutoff.
Cutoff for switching to chunked upload.
Enter a size with suffix K,M,G,T. Press Enter for the default (8Mi).
upload_cutoff>

Option chunk_size.
Upload chunk size.
Must a power of 2 >= 256k.
Making this larger will improve performance, but note that each chunk
is buffered in memory one per transfer.
Reducing this will reduce memory usage but decrease performance.
Enter a size with suffix K,M,G,T. Press Enter for the default (8Mi).
chunk_size>

Option acknowledge_abuse.
Set to allow files which return cannotDownloadAbusiveFile to be downloaded.
If downloading a file returns the error "This file has been identified
as malware or spam and cannot be downloaded" with the error code
"cannotDownloadAbusiveFile" then supply this flag to rclone to
indicate you acknowledge the risks of downloading the file and rclone
will download it anyway.
Note that if you are using service account it will need Manager
permission (not Content Manager) to for this flag to work. If the SA
does not have the right permission, Google will just ignore the flag.
Enter a boolean value (true or false). Press Enter for the default (false).
acknowledge_abuse>

Option keep_revision_forever.
Keep new head revision of each file forever.
Enter a boolean value (true or false). Press Enter for the default (false).
keep_revision_forever>

Option v2_download_min_size.
If Object's are greater, use drive v2 API to download.
Enter a size with suffix K,M,G,T. Press Enter for the default (off).
v2_download_min_size>

Option pacer_min_sleep.
Minimum time to sleep between API calls.
Enter a duration s,m,h,d,w,M,y. Press Enter for the default (100ms).
pacer_min_sleep>

Option pacer_burst.
Number of API calls to allow without sleeping.
Enter a signed integer. Press Enter for the default (100).
pacer_burst>

Option server_side_across_configs.
Deprecated: use --server-side-across-configs instead.
Allow server-side operations (e.g. copy) to work across different drive configs.
This can be useful if you wish to do a server-side copy between two
different Google drives.  Note that this isn't enabled by default
because it isn't easy to tell if it will work between any two
configurations.
Enter a boolean value (true or false). Press Enter for the default (false).
server_side_across_configs>

Option disable_http2.
Disable drive using http2.
There is currently an unsolved issue with the google drive backend and
HTTP/2.  HTTP/2 is therefore disabled by default for the drive backend
but can be re-enabled here.  When the issue is solved this flag will
be removed.
See: https://github.com/rclone/rclone/issues/3631
Enter a boolean value (true or false). Press Enter for the default (true).
disable_http2>

Option stop_on_upload_limit.
Make upload limit errors be fatal.
At the time of writing it is only possible to upload 750 GiB of data to
Google Drive a day (this is an undocumented limit). When this limit is
reached Google Drive produces a slightly different error message. When
this flag is set it causes these errors to be fatal.  These will stop
the in-progress sync.
Note that this detection is relying on error message strings which
Google don't document so it may break in the future.
See: https://github.com/rclone/rclone/issues/3857
Enter a boolean value (true or false). Press Enter for the default (false).
stop_on_upload_limit>

Option stop_on_download_limit.
Make download limit errors be fatal.
At the time of writing it is only possible to download 10 TiB of data from
Google Drive a day (this is an undocumented limit). When this limit is
reached Google Drive produces a slightly different error message. When
this flag is set it causes these errors to be fatal.  These will stop
the in-progress sync.
Note that this detection is relying on error message strings which
Google don't document so it may break in the future.
Enter a boolean value (true or false). Press Enter for the default (false).
stop_on_download_limit>

Option skip_shortcuts.
If set skip shortcut files.
Normally rclone dereferences shortcut files making them appear as if
they are the original file (see [the shortcuts section](#shortcuts)).
If this flag is set then rclone will ignore shortcut files completely.
Enter a boolean value (true or false). Press Enter for the default (false).
skip_shortcuts>

Option skip_dangling_shortcuts.
If set skip dangling shortcut files.
If this is set then rclone will not show any dangling shortcuts in listings.
Enter a boolean value (true or false). Press Enter for the default (false).
skip_dangling_shortcuts>

Option resource_key.
Resource key for accessing a link-shared file.
If you need to access files shared with a link like this
    https://drive.google.com/drive/folders/XXX?resourcekey=YYY&usp=sharing
Then you will need to use the first part "XXX" as the "root_folder_id"
and the second part "YYY" as the "resource_key" otherwise you will get
404 not found errors when trying to access the directory.
See: https://developers.google.com/drive/api/guides/resource-keys
This resource key requirement only applies to a subset of old files.
Note also that opening the folder once in the web interface (with the
user you've authenticated rclone with) seems to be enough so that the
resource key is not needed.
Enter a value. Press Enter to leave empty.
resource_key>

Option fast_list_bug_fix.
Work around a bug in Google Drive listing.
Normally rclone will work around a bug in Google Drive when using
--fast-list (ListR) where the search "(A in parents) or (B in
parents)" returns nothing sometimes. See #3114, #4289 and
https://issuetracker.google.com/issues/149522397
Rclone detects this by finding no items in more than one directory
when listing and retries them as lists of individual directories.
This means that if you have a lot of empty directories rclone will end
up listing them all individually and this can take many more API
calls.
This flag allows the work-around to be disabled. This is **not**
recommended in normal use - only if you have a particular case you are
having trouble with like many empty directories.
Enter a boolean value (true or false). Press Enter for the default (true).
fast_list_bug_fix>

Option metadata_owner.
Control whether owner should be read or written in metadata.
Owner is a standard part of the file metadata so is easy to read. But it
isn't always desirable to set the owner from the metadata.
Note that you can't set the owner on Shared Drives, and that setting
ownership will generate an email to the new owner (this can't be
disabled), and you can't transfer ownership to someone outside your
organization.
Choose a number from below, or type in your own fs.Bits[github.com/rclone/rclone/backend/drive.rwChoices] value.
Press Enter for the default (read).
 1 / Do not read or write the value
   \ (off)
 2 / Read the value only
   \ (read)
 3 / Write the value only
   \ (write)
 4 / Read and Write the value.
   \ (read,write)
metadata_owner>

Option metadata_permissions.
Control whether permissions should be read or written in metadata.
Reading permissions metadata from files can be done quickly, but it
isn't always desirable to set the permissions from the metadata.
Note that rclone drops any inherited permissions on Shared Drives and
any owner permission on My Drives as these are duplicated in the owner
metadata.
Choose a number from below, or type in your own fs.Bits[github.com/rclone/rclone/backend/drive.rwChoices] value.
Press Enter for the default (off).
 1 / Do not read or write the value
   \ (off)
 2 / Read the value only
   \ (read)
 3 / Write the value only
   \ (write)
 4 / Read and Write the value.
   \ (read,write)
metadata_permissions>

Option metadata_labels.
Control whether labels should be read or written in metadata.
Reading labels metadata from files takes an extra API transaction and
will slow down listings. It isn't always desirable to set the labels
from the metadata.
The format of labels is documented in the drive API documentation at
https://developers.google.com/drive/api/reference/rest/v3/Label -
rclone just provides a JSON dump of this format.
When setting labels, the label and fields must already exist - rclone
will not create them. This means that if you are transferring labels
from two different accounts you will have to create the labels in
advance and use the metadata mapper to translate the IDs between the
two accounts.
Choose a number from below, or type in your own fs.Bits[github.com/rclone/rclone/backend/drive.rwChoices] value.
Press Enter for the default (off).
 1 / Do not read or write the value
   \ (off)
 2 / Read the value only
   \ (read)
 3 / Write the value only
   \ (write)
 4 / Read and Write the value.
   \ (read,write)
metadata_labels>

Option encoding.
The encoding for the backend.
See the [encoding section in the overview](/overview/#encoding) for more info.
Enter a encoder.MultiEncoder value. Press Enter for the default (InvalidUtf8).
encoding>

Option env_auth.
Get IAM credentials from runtime (environment variables or instance meta data if no env vars).
Only applies if service_account_file and service_account_credentials is blank.
Choose a number from below, or type in your own boolean value (true or false).
Press Enter for the default (false).
 1 / Enter credentials in the next step.
   \ (false)
 2 / Get GCP IAM credentials from the environment (env vars or IAM).
   \ (true)
env_auth>

Option description.
Description of the remote
Enter a value. Press Enter to leave empty.
description>

Edit advanced config?
y) Yes
n) No (default)
y/n> n

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

Option token.

OAuth Access Token as a JSON blob.

Enter a value. Press Enter to leave empty.

token>

Option auth_url.

Auth server URL.

Leave blank to use the provider defaults.

Enter a value. Press Enter to leave empty.

auth_url>

Option token_url.

Token server url.

Leave blank to use the provider defaults.

Enter a value. Press Enter to leave empty.

token_url>

Option root_folder_id.

ID of the root folder.

Leave blank normally.

Fill in to access "Computers" folders (see docs), or for rclone to use

a non root folder as its starting point.

Enter a value. Press Enter to leave empty.

root_folder_id> xxxxxGoogleDriveFolderIDxxxxx

Option auth_owner_only.

Only consider files owned by the authenticated user.

Enter a boolean value (true or false). Press Enter for the default (false).

auth_owner_only>

Option use_trash.

Send files to the trash instead of deleting permanently.

Defaults to true, namely sending files to the trash.

Use `--drive-use-trash=false` to delete files permanently instead.

Enter a boolean value (true or false). Press Enter for the default (true).

use_trash>

Option copy_shortcut_content.

Server side copy contents of shortcuts instead of the shortcut.

When doing server side copies, normally rclone will copy shortcuts as

shortcuts.

If this flag is used then rclone will copy the contents of shortcuts

rather than shortcuts themselves when doing server side copies.

Enter a boolean value (true or false). Press Enter for the default (false).

copy_shortcut_content>

Option skip_gdocs.

Skip google documents in all listings.

If given, gdocs practically become invisible to rclone.

Enter a boolean value (true or false). Press Enter for the default (false).

skip_gdocs>

Option show_all_gdocs.

Show all Google Docs including non-exportable ones in listings.

If you try a server side copy on a Google Form without this flag, you

will get this error:

No export formats found for "application/vnd.google-apps.form"

However adding this flag will allow the form to be server side copied.

Note that rclone doesn't add extensions to the Google Docs file names

in this mode.

Do **not** use this flag when trying to download Google Docs - rclone

will fail to download them.

Enter a boolean value (true or false). Press Enter for the default (false).

show_all_gdocs>

Option skip_checksum_gphotos.

Skip checksums on Google photos and videos only.

Use this if you get checksum errors when transferring Google photos or

videos.

Setting this flag will cause Google photos and videos to return a

blank checksums.

Google photos are identified by being in the "photos" space.

Corrupted checksums are caused by Google modifying the image/video but

not updating the checksum.

Enter a boolean value (true or false). Press Enter for the default (false).

skip_checksum_gphotos>

Option shared_with_me.

Only show files that are shared with me.

Instructs rclone to operate on your "Shared with me" folder (where

Google Drive lets you access the files and folders others have shared

with you).

This works both with the "list" (lsd, lsl, etc.) and the "copy"

commands (copy, sync, etc.), and with all other commands too.

Enter a boolean value (true or false). Press Enter for the default (false).

shared_with_me>

Option trashed_only.

Only show files that are in the trash.

This will show trashed files in their original directory structure.

Enter a boolean value (true or false). Press Enter for the default (false).

trashed_only>

Option starred_only.

Only show files that are starred.

Enter a boolean value (true or false). Press Enter for the default (false).

starred_only>

Option export_formats.

Comma separated list of preferred formats for downloading Google docs.

Enter a string value. Press Enter for the default (docx,xlsx,pptx,svg).

export_formats>

Option import_formats.

Comma separated list of preferred formats for uploading Google docs.

Enter a value. Press Enter to leave empty.

import_formats>

Option allow_import_name_change.

Allow the filetype to change when uploading Google docs.

E.g. file.doc to file.docx. This will confuse sync and reupload every time.

Enter a boolean value (true or false). Press Enter for the default (false).

allow_import_name_change>

Option list_chunk.

Size of listing chunk 100-1000, 0 to disable.

Enter a signed integer. Press Enter for the default (1000).

list_chunk>

Option impersonate.

Impersonate this user when using a service account.

Enter a value. Press Enter to leave empty.

impersonate>

Option upload_cutoff.

Cutoff for switching to chunked upload.

Enter a size with suffix K,M,G,T. Press Enter for the default (8Mi).

upload_cutoff>

Option chunk_size.

Upload chunk size.

Must a power of 2 >= 256k.

Making this larger will improve performance, but note that each chunk

is buffered in memory one per transfer.

Reducing this will reduce memory usage but decrease performance.

Enter a size with suffix K,M,G,T. Press Enter for the default (8Mi).

chunk_size>

Option acknowledge_abuse.

Set to allow files which return cannotDownloadAbusiveFile to be downloaded.

If downloading a file returns the error "This file has been identified

as malware or spam and cannot be downloaded" with the error code

"cannotDownloadAbusiveFile" then supply this flag to rclone to

indicate you acknowledge the risks of downloading the file and rclone

will download it anyway.

Note that if you are using service account it will need Manager

permission (not Content Manager) to for this flag to work. If the SA

does not have the right permission, Google will just ignore the flag.

Enter a boolean value (true or false). Press Enter for the default (false).

acknowledge_abuse>

Option keep_revision_forever.

Keep new head revision of each file forever.

Enter a boolean value (true or false). Press Enter for the default (false).

keep_revision_forever>

Option v2_download_min_size.

If Object's are greater, use drive v2 API to download.

Enter a size with suffix K,M,G,T. Press Enter for the default (off).

v2_download_min_size>

Option pacer_min_sleep.

Minimum time to sleep between API calls.

Enter a duration s,m,h,d,w,M,y. Press Enter for the default (100ms).

pacer_min_sleep>

Option pacer_burst.

Number of API calls to allow without sleeping.

Enter a signed integer. Press Enter for the default (100).

pacer_burst>

Option server_side_across_configs.

Deprecated: use --server-side-across-configs instead.

Allow server-side operations (e.g. copy) to work across different drive configs.

This can be useful if you wish to do a server-side copy between two

different Google drives. Note that this isn't enabled by default

because it isn't easy to tell if it will work between any two

configurations.

Enter a boolean value (true or false). Press Enter for the default (false).

server_side_across_configs>

Option disable_http2.

Disable drive using http2.

There is currently an unsolved issue with the google drive backend and

HTTP/2. HTTP/2 is therefore disabled by default for the drive backend

but can be re-enabled here. When the issue is solved this flag will

be removed.

See: https://github.com/rclone/rclone/issues/3631

Enter a boolean value (true or false). Press Enter for the default (true).

disable_http2>

Option stop_on_upload_limit.

Make upload limit errors be fatal.

At the time of writing it is only possible to upload 750 GiB of data to

Google Drive a day (this is an undocumented limit). When this limit is

reached Google Drive produces a slightly different error message. When

this flag is set it causes these errors to be fatal. These will stop

the in-progress sync.

Note that this detection is relying on error message strings which

Google don't document so it may break in the future.

See: https://github.com/rclone/rclone/issues/3857

Enter a boolean value (true or false). Press Enter for the default (false).

stop_on_upload_limit>

Option stop_on_download_limit.

Make download limit errors be fatal.

At the time of writing it is only possible to download 10 TiB of data from

Google Drive a day (this is an undocumented limit). When this limit is

reached Google Drive produces a slightly different error message. When

this flag is set it causes these errors to be fatal. These will stop

the in-progress sync.

Note that this detection is relying on error message strings which

Google don't document so it may break in the future.

Enter a boolean value (true or false). Press Enter for the default (false).

stop_on_download_limit>

Option skip_shortcuts.

If set skip shortcut files.

Normally rclone dereferences shortcut files making them appear as if

they are the original file (see [the shortcuts section](#shortcuts)).

If this flag is set then rclone will ignore shortcut files completely.

Enter a boolean value (true or false). Press Enter for the default (false).

skip_shortcuts>

Option skip_dangling_shortcuts.

If set skip dangling shortcut files.

If this is set then rclone will not show any dangling shortcuts in listings.

Enter a boolean value (true or false). Press Enter for the default (false).

skip_dangling_shortcuts>

Option resource_key.

Resource key for accessing a link-shared file.

If you need to access files shared with a link like this

https://drive.google.com/drive/folders/XXX?resourcekey=YYY&usp=sharing

Then you will need to use the first part "XXX" as the "root_folder_id"

and the second part "YYY" as the "resource_key" otherwise you will get

404 not found errors when trying to access the directory.

See: https://developers.google.com/drive/api/guides/resource-keys

This resource key requirement only applies to a subset of old files.

Note also that opening the folder once in the web interface (with the

user you've authenticated rclone with) seems to be enough so that the

resource key is not needed.

Enter a value. Press Enter to leave empty.

resource_key>

Option fast_list_bug_fix.

Work around a bug in Google Drive listing.

Normally rclone will work around a bug in Google Drive when using

--fast-list (ListR) where the search "(A in parents) or (B in

parents)" returns nothing sometimes. See #3114, #4289 and

https://issuetracker.google.com/issues/149522397

Rclone detects this by finding no items in more than one directory

when listing and retries them as lists of individual directories.

This means that if you have a lot of empty directories rclone will end

up listing them all individually and this can take many more API

calls.

This flag allows the work-around to be disabled. This is **not**

recommended in normal use - only if you have a particular case you are

having trouble with like many empty directories.

Enter a boolean value (true or false). Press Enter for the default (true).

fast_list_bug_fix>

Option metadata_owner.

Control whether owner should be read or written in metadata.

Owner is a standard part of the file metadata so is easy to read. But it

isn't always desirable to set the owner from the metadata.

Note that you can't set the owner on Shared Drives, and that setting

ownership will generate an email to the new owner (this can't be

disabled), and you can't transfer ownership to someone outside your

organization.

Choose a number from below, or type in your own fs.Bits[github.com/rclone/rclone/backend/drive.rwChoices] value.

Press Enter for the default (read).

1 / Do not read or write the value

\ (off)

2 / Read the value only

\ (read)

3 / Write the value only

\ (write)

4 / Read and Write the value.

\ (read,write)

metadata_owner>

Option metadata_permissions.

Control whether permissions should be read or written in metadata.

Reading permissions metadata from files can be done quickly, but it

isn't always desirable to set the permissions from the metadata.

Note that rclone drops any inherited permissions on Shared Drives and

any owner permission on My Drives as these are duplicated in the owner

metadata.

Choose a number from below, or type in your own fs.Bits[github.com/rclone/rclone/backend/drive.rwChoices] value.

Press Enter for the default (off).

1 / Do not read or write the value

\ (off)

2 / Read the value only

\ (read)

3 / Write the value only

\ (write)

4 / Read and Write the value.

\ (read,write)

metadata_permissions>

Option metadata_labels.

Control whether labels should be read or written in metadata.

Reading labels metadata from files takes an extra API transaction and

will slow down listings. It isn't always desirable to set the labels

from the metadata.

The format of labels is documented in the drive API documentation at

https://developers.google.com/drive/api/reference/rest/v3/Label -

rclone just provides a JSON dump of this format.

When setting labels, the label and fields must already exist - rclone

will not create them. This means that if you are transferring labels

from two different accounts you will have to create the labels in

advance and use the metadata mapper to translate the IDs between the

two accounts.

Choose a number from below, or type in your own fs.Bits[github.com/rclone/rclone/backend/drive.rwChoices] value.

Press Enter for the default (off).

1 / Do not read or write the value

\ (off)

2 / Read the value only

\ (read)

3 / Write the value only

\ (write)

4 / Read and Write the value.

\ (read,write)

metadata_labels>

Option encoding.

The encoding for the backend.

See the [encoding section in the overview](/overview/#encoding) for more info.

Enter a encoder.MultiEncoder value. Press Enter for the default (InvalidUtf8).

encoding>

Option env_auth.

Get IAM credentials from runtime (environment variables or instance meta data if no env vars).

Only applies if service_account_file and service_account_credentials is blank.

Choose a number from below, or type in your own boolean value (true or false).

Press Enter for the default (false).

1 / Enter credentials in the next step.

\ (false)

2 / Get GCP IAM credentials from the environment (env vars or IAM).

\ (true)

env_auth>

Option description.

Description of the remote

Enter a value. Press Enter to leave empty.

description>

Edit advanced config?

y) Yes

n) No (default)

y/n> n

ブラウザから Google にアクセスして認証を通すのですが、今回設定している VPS はデスクトップ環境が入っていないので No（n）を応答します。

Use web browser to automatically authenticate rclone with remote?
 * Say Y if the machine running rclone has a web browser you can use
 * Say N if running rclone on a (remote) machine without web browser access
If not sure try Y. If Y failed, try N.

y) Yes (default)
n) No
y/n> n

Use web browser to automatically authenticate rclone with remote?

* Say Y if the machine running rclone has a web browser you can use

* Say N if running rclone on a (remote) machine without web browser access

If not sure try Y. If Y failed, try N.

y) Yes (default)

n) No

y/n> n

Option config_token.
For this to work, you will need rclone available on a machine that has
a web browser available.
For more help and alternate methods see: https://rclone.org/remote_setup/
Execute the following on the machine with the web browser (same rclone
version recommended):
        rclone authorize "drive" "XXXXXX_AUTH_TOKEN_XXXX"
Then paste the result.
Enter a value.
config_token>

Option config_token.

For this to work, you will need rclone available on a machine that has

a web browser available.

For more help and alternate methods see: https://rclone.org/remote_setup/

Execute the following on the machine with the web browser (same rclone

version recommended):

rclone authorize "drive" "XXXXXX_AUTH_TOKEN_XXXX"

Then paste the result.

Enter a value.

config_token>

Web ブラウザが入っている環境で、同じバージョンの Rclone を実行してトークンを取得する必要があるようです。

Windows 側でリモートセットアップを行う

ここで一旦ターミナルから離れて、Windows 側から認証操作を行います。

Rclone の公式サイトから、同じバージョン（1.66.0）の Windows 版の Zip ファイルをダウンロードして解凍します。

コマンドプロンプトを開き rclone.exe をドラッグ & ドロップすると Rclone までのパスが補完されるので、後ろにサーバー側の Rclone の認証トークンを貼り付け、実行します。

C:\WINDOWS\system32>C:\Users\xxxxxx\Desktop\rclone-v1.66.0-windows-amd64\rclone.exe authorize "drive" "XXXXXX_AUTH_TOKEN_XXXX"
NOTICE: Config file "C:\\Users\\xxxxxx\\AppData\\Roaming\\rclone\\rclone.conf" not found - using defaults
NOTICE: Make sure your Redirect URL is set to "http://127.0.0.1:53682/" in your custom config.
NOTICE: If your browser doesn't open automatically go to the following link: http://127.0.0.1:53682/auth?state=xxxxxxxxxxxxxxxxxxxxxx
NOTICE: Log in and authorize rclone for access
NOTICE: Waiting for code...

C:\WINDOWS\system32>C:\Users\xxxxxx\Desktop\rclone-v1.66.0-windows-amd64\rclone.exe authorize "drive" "XXXXXX_AUTH_TOKEN_XXXX"

NOTICE: Config file "C:\\Users\\xxxxxx\\AppData\\Roaming\\rclone\\rclone.conf" not found - using defaults

NOTICE: Make sure your Redirect URL is set to "http://127.0.0.1:53682/" in your custom config.

NOTICE: If your browser doesn't open automatically go to the following link: http://127.0.0.1:53682/auth?state=xxxxxxxxxxxxxxxxxxxxxx

NOTICE: Log in and authorize rclone for access

NOTICE: Waiting for code...

ブラウザが自動的に起動し、Google の警告画面が表示されます。（本番環境に移行した後、確認ステータスをパスしていないため表示されている警告なので、問題ありません。）

「詳細」をクリックすることで、先に進むリンクが表示されます。

Rclone（安全ではないページ）に移動します。

ログインすると、Rclone が Google アカウントへのアクセスを求めてきますので「続行」をクリックします。

完了画面になりますので、ブラウザを閉じてください。

コマンドプロンプトにトークンが表示されていますので、コピーします。

NOTICE: Got code
Paste the following into your remote machine --->
XXXXXXXXXX_SECRET_TOKEN_XXXXXXXXXX
<---End paste

NOTICE: Got code

Paste the following into your remote machine --->

XXXXXXXXXX_SECRET_TOKEN_XXXXXXXXXX

<---End paste

Windows 側で必要な作業は以上です。

再びターミナルに戻って VPS 側の続きを進めます。

config_token> XXXXXXXXXX_SECRET_TOKEN_XXXXXXXXXX

1	config_token> XXXXXXXXXX_SECRET_TOKEN_XXXXXXXXXX

ドライブを共有するか聞かれますが、バックアップを格納する目的なので No（n）を応答します。

Configure this as a Shared Drive (Team Drive)?

y) Yes
n) No (default)
y/n> n

Configure this as a Shared Drive (Team Drive)?

y) Yes

n) No (default)

y/n> n

設定内容の確認が表示されますので、間違いがなければ Yes（y）を押すと設定が保存されます。

Configuration complete.
Options:
- type: drive
- client_id: xxxxxxxxxxxx-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx.apps.googleusercontent.com
- client_secret: GOCSPX-XXXXXXXXXXXXXXXXXXXXXXXXXXXX
- scope: drive
- token: {"access_token":"XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX","token_type":"Bearer","refresh_token":"1//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx","expiry":"2024-05-00T00:00:00.000000000+09:00+09:00"}
- team_drive:
Keep this "GoogleDrive" remote?
y) Yes this is OK (default)
e) Edit this remote
d) Delete this remote
y/e/d> y
Current remotes:

Name                 Type
====                 ====
GoogleDrive          drive

e) Edit existing remote
n) New remote
d) Delete remote
r) Rename remote
c) Copy remote
s) Set configuration password
q) Quit config
e/n/d/r/c/s/q> q

Configuration complete.

Options:

- type: drive

- client_id: xxxxxxxxxxxx-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx.apps.googleusercontent.com

- client_secret: GOCSPX-XXXXXXXXXXXXXXXXXXXXXXXXXXXX

- scope: drive

- token: {"access_token":"XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX","token_type":"Bearer","refresh_token":"1//xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx","expiry":"2024-05-00T00:00:00.000000000+09:00+09:00"}

- team_drive:

Keep this "GoogleDrive" remote?

y) Yes this is OK (default)

e) Edit this remote

d) Delete this remote

y/e/d> y

Current remotes:

Name Type

==== ====

GoogleDrive drive

e) Edit existing remote

n) New remote

d) Delete remote

r) Rename remote

c) Copy remote

s) Set configuration password

q) Quit config

e/n/d/r/c/s/q> q

Rclone のメニューに戻ったら Quit config（q）で抜けます。

とても長くなりましたが、以上で Google Drive との連携は完了です。

Google Drive にバックアップ実行

ちゃんと動くか、まずは手動でバックアップを行ってみます。

# rclone copy /backup/backup.tar.bz2 GoogleDrive:

1	# rclone copy /backup/backup.tar.bz2 GoogleDrive:

Google Drive をチェックしたところ、きちんとバックアップすることができました。

逆に Google Drive からバックアップをダウンロードする場合もテストしてみます。

# rclone copy GoogleDrive:backup.tar.bz2 ./
# ls
backup.tar.bz2
# rm -f backup.tar.bz2

# rclone copy GoogleDrive:backup.tar.bz2 ./

# ls

backup.tar.bz2

# rm -f backup.tar.bz2

Cron で自動遠隔バックアップ

スクリプトはいつもお世話になっているサイトからコピペさせてもらっています。

遠隔地バックアップ（Rclone） - AlmaLinuxで自宅サーバー構築

遠隔地バックアップ（Rclone）

ごみ箱をクリアする部分だけ、Google Drive では -q オプションが必要なので修正しました。

#!/bin/bash

# バックアップファイル名定義
BACKUPFILE=/backup/backup.tar.bz2

# バックアップ
rclone copyto ${BACKUPFILE} GoogleDrive:`hostname`_`basename ${BACKUPFILE}`

# ごみ箱クリア（Google Driveには -q オプションが必要）
rclone cleanup GoogleDrive: -q

exit 0

#!/bin/bash

# バックアップファイル名定義

BACKUPFILE=/backup/backup.tar.bz2

# バックアップ

rclone copyto ${BACKUPFILE} GoogleDrive:`hostname`_`basename ${BACKUPFILE}`

# ごみ箱クリア（Google Driveには -q オプションが必要）

rclone cleanup GoogleDrive: -q

exit 0

MariaDB のバックアップ用 Cron と連動するように設定します。

Cron ジョブを「&&」で繋げることで、1 つ目の処理（MariaDB のバックアップ）が正常に終了した場合に、次の処理（Google Drive にバックアップをコピー）を行うことができます。

0 5 * * * root /root/backup.sh && /root/backup_to_rclone.sh

1	0 5 * * * root /root/backup.sh && /root/backup_to_rclone.sh

連携が維持されている事を確認する

Rclone と Google Cloud の設定は、このページで紹介した方法で行えば問題ないことを確認しましたが、手順を間違うと 1 週間で Google の認証情報の有効期限が切れて、再度認証が必要になる場合があります。

8 日以降も自動でバックアップが取れているかを確認しておきましょう。

まとめ

以前（CentOS 7 の時代）は、Rclone と Google Drive の連携するのにここまで面倒な手続きは不要だっと思うのですが、いろいろ複雑になっていますね。
